GIS-R10: Hotspot GatewayHow to purchase

The GIS-R10 Hotspot gateway provides any business with all the features to transform a wireless access point into a full function WiFi Hotspot for up to 250 concurrent users. Guests and visitors who require Internet access can be managed via the login page, authentication, firewall, speed control, content filter and a disclaimer file that can be edited.

Businesses that want to charge for Hotspot services can use the PayPal® and credit card billing service that is combined with the user reporting and account feature.

Download the GIS-R10 Product Data sheetHow to purchase
Download the GIS-R10 Quick Start Guide
Download the GIS-R10 Product Manual (5mb)
Demo of the GIS-R2 Hotspot admin pages (similar to GIS-R10)

 Guest Internet R10 Hotspot Controller

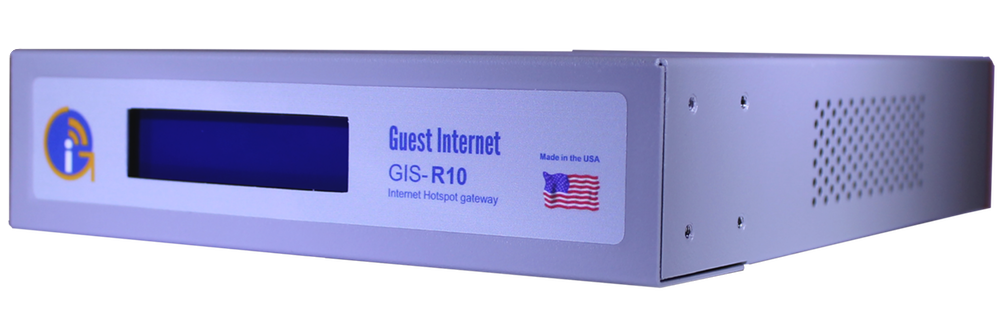

Guest Internet R10 Hotspot Gateway

The GIS-R10 is popular with motels and hotels, however it is also used by many other types of businesses that provide Internet access as a service to the public. The GIS-R10 is frequently installed with several wireless access points to provide WiFI Internet throughout a building, such as a motel.

The GIS-R10 can also be used to connect wired hotel rooms where a switch must be added to connect more cables to the LAN ports. The GIS-R10 can be used to connect business center computers and Internet kiosks, and is ideal for an Internet café. Any type of wireless access point can be connected to the GIS-R10 and provide managed WiFi Internet for laptops, netbooks, smart phones and any WiFi enabled device.

In addition to the core features the GIS-R10 also adds an additional firewall to block file sharing. The GIS-R10 includes dual-WAN load-balance with failover.

Summary of GIS-R10 Features

The GIS-R10 supports up to 250 concurrent users with the following core functionality:

The API provides an interface for Point of Sale (PoS) and Property Management Systems (PMS) to manage Internet access codes.
  • Plug and play wizard
  • Customisable login page
  • Access code generation
  • Login authentication
  • Disclaimer text editor
  • Content filtering (OpenDNS)
  • Bandwidth (speed) control
  • Dual Hotspot gateway (2 zones)
  • Remote management
  • PayPal® & credit card billing
  • Usage and billing reports
  • URL, IP and MAC filters
  • Port forwarding
  • Configuration backup/restore
  • Dual WAN load balance
  • Dual WAN failover

GIS-R10 Hotspot Gateway Application:How to purchase

Guest Internet Hotspot installation

GIS-R10 Technical specifications:

  • GATEWAY FEATURES
  • Plug and play with the setup wizard
  • Local and remote configuration
  • Content filter using OpenDNS
  • Download/upload speed control
  • Allowed IP and MAC addresses
  • Free and controlled Internet access
  • PayPal® and credit card billing
  • Timer/calendar to set availability
  • AUTHENTICATION
  • Concurrent clients: 250*
  • Access code database: 10000
  • LOGIN PAGE
  • Branding via the login page generator
  • Twelve login pages are preinstalled
  • Upload your own background graphic
  • Create a custom HTML login page design
  • Add custom login page banner advertising
  • Disclaimer agreement with built in editor
  • Link to business web site home page
  • Login page access code generator
  • Login code usage reporting
  • Build a 'walled garden' using URL bypass
  • Login page simulator on our website
  • Billing via Credit Card and PayPal®
  • Customer data collection application
  • Login page backup/restore
  • API FOR CODE MANAGEMENT
  • Integration with PoS and PMS
  • ETHERNET
  • WAN1-WAN2 (Internet) RJ-45 10/100
  • LAN1 (network) RJ-45 10/100
  • DUAL WAN
  • Load balance over two Internet circuits
  • Failover when an Internet circuit fails
  • DIMENSIONS AND POWER
  • Enclosure: W 7" x D 8" x H 1.75"
  • Rack mount kit available
  • 12volt 110v/220v supply, 50W
  • WARRANTY: 3 years

Applications for the GIS-R10How to purchase

  • Motel / Hotel
  • Music concert
  • Theater
  • Hospital
  • Airport
  • Shopping mall
  • Student dorms
  • Municipal office
  • Multi-tenant condo
  • University
  • Resort
  • Trade show

* The maximum number of concurrent users for the GIS-R10 is specified with a backhaul circuit total of 45Mb/sec and with users sending /receiving emails and viewing web sites. The maximum value will be reduced when the Internet backhaul is slower than the recommended speed or when the user traffic includes download/upload of large files, gaming, video streaming or VoIP.
