Guest Internet: Products for guest Internet access

Guest Internet Solutions

1-800-213-0106

Wireless Internet (Wi-Fi) for Restaurants and Lodging Businesses

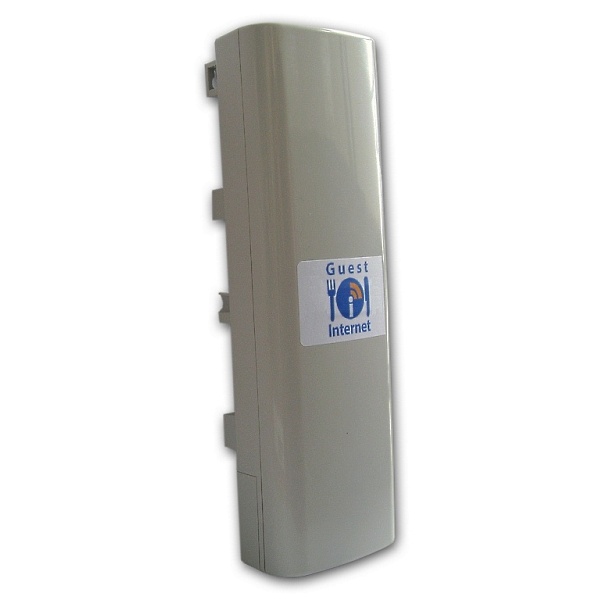

W1

The W1 wireless WiFi Internet product can be installed outdoors. The unit provides directional wireless coverage over a very large area. A DSL Internet connection is required.

W1 Product Data sheet

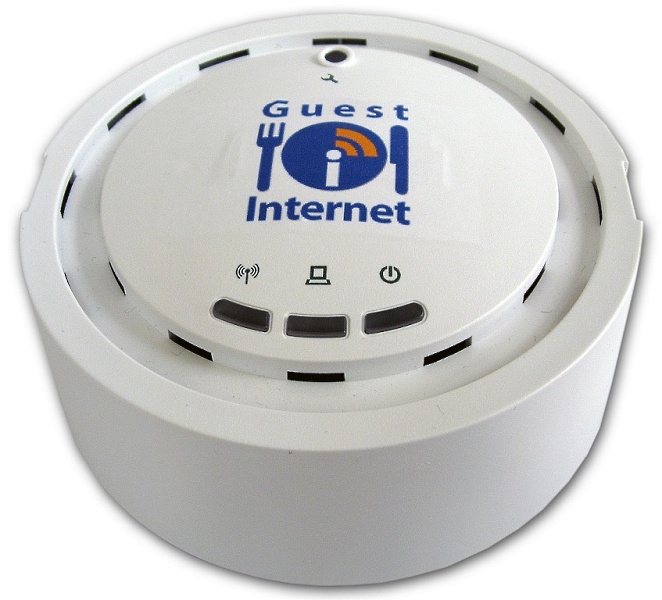

W2

Indoor restautant and lodging WiFi access point installed like smoke alarm

The W2 wireless WiFi Internet product looks like a smoke detector. The unit is installed in the center of a room or in a hotel corridor to provide wireless Internet on guest rooms. A DSL Internet connection is required.

W2 Product Data sheet

W3

The W3 wireless WiFi Internet product can be installed in the corner of a room. The product provides directional wireless coverage across the room. A DSL Internet connection is required

W3 Product Data sheet

Technical specifications:

INBOUND ETHERNET FIREWALL
No default password: password activation
Peak throughput: 100Mb/s
Unlimited users supported
DoS and DDoS protection
Malformed packet protection
SYN cookie protection
Zone-based IP spoofing

W1: DIMENSIONS AND POWER
Enclosure: 10.2" x 3.3" x 2.2"
24volt PoE to 110v/220v supply, 25W

LOGIN PAGE
Plug and play: setup wizard
Branding: login page generator
Optional login page customization
Login page advertising
Disclaimer agreement with built in editor
Link to business web site home page
Login access code generator
Login code usage reporting
Maximum access code file size: 100 codes

W2: DIMENSIONS AND POWER
Enclosure: 4.7" diameter x 2.0"
48volt PoE to 110v/220v supply, 40W

WIRELESS
W1: 620mW (+28dBm) RF output
W1: Directional antenna, 60deg 10dBi
W2: 620mW (+28dBm) RF output
W2: Omni-directional antenna, 4dBi
W3: 250mW (+23dBm) RF output
W3: Directional antenna, 75deg 7dBi

ETHERNET
RJ-45 10/100, Power over Ethernet

W3: DIMENSIONS AND POWER
Enclosure: 7.5" x 1.9" x 1.4"
24volt PoE to 110v/220v supply, 25W

Do you need enterprise class guest Internet management? If so call us about upgrading to our Hospitality Internet Solution
Multi-site /multi-device guest Internet management Failure monitoring with email alarms Remote management of devices and groups	Create custom login pages with data capture Credit card, scratch card and multi-mode code billing Usage and billing reports for devices and groups
