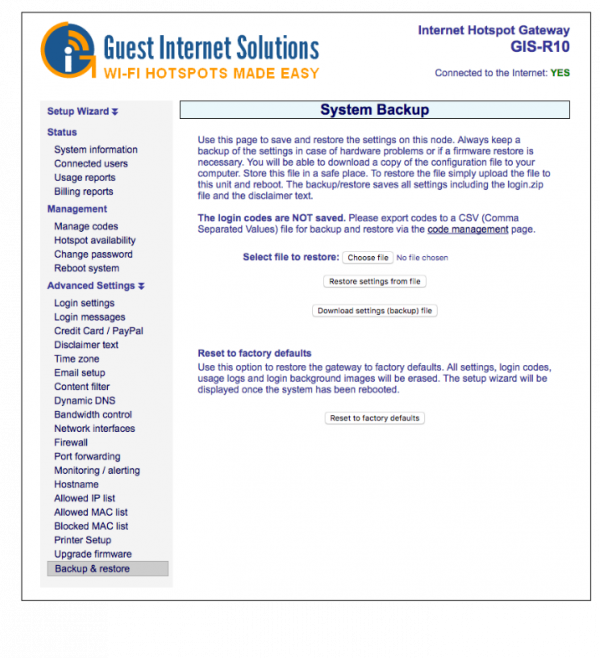

Backup & Restore

All configuration parameters that have been set on a gateway unit are stored in a file in memory.

The configuration file can be downloaded to a computer and saved for backup purposes. This page also permits the configuration backup file to be uploaded into the gateway to restore a previous configuration setting. The backup file contains the following information:

  • All configuration settings

  • The login page zip file (if uploaded)

  • The modified terms and conditions text

Configuration settings backup and restore has two important applications:

  • The first is to save the configuration file each time that the gateway configuration is changed. If some problem occurs with a configuration change then the previous configuration can be restored.

  • The second application is for installers who are putting many similar configured gateways.
    One gateway is configured for the application and then the configuration file is saved, so the configuration file can be restored into all other gateways to be installed at different locations, thus speeding the installation process.

This screen also has a button that can be used to reset the unit to factory defaults. The function of this button is identical to the reset button on the rear of the enclosure. After the button is clicked all settings will be erased and the unit will restart with the wizard page.
